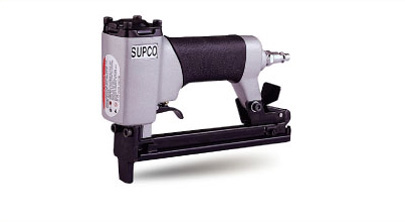

SUPCO S-5016
Duo Fast 5000 Series
[+] Click image below
Application
- Upholstery
- Felt insulation
- Trim & molding
.
DUO FAST 5000 SERIES 9/16"
Part diagram: PDF JPEG List: WORD
Wire size: 22GA
Weight: 0.09kg (2.0lb)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
18
21
30
31
32
33
34
35
36
37
38
39
40
41 		CA-06
OR-47
ES-11
CA-08
ES-12
PS-07
ES-15
WS-22
BP-07
DB-16
SM-24
CY-10
OR-48
BP-08
BD-20
OR-51
ES-13
WS-02
M4*10
E-2.5
TG-11
SM-25
CA-07
ES-14
SW-07
E2.5
FP-16
M5*20

CAP
O-RING
DAMPER
PISTON STOP
CAP SLEEVE
PISTON COVER
DAMPER
BLADE STOP
PISTON
DRIVER BLADE
PISTON PIN
CYLINDER
CYLINDER O-RING
RETURN SEAL
BODY
VALVE CAP SEAL
VALVE COVER
WASHER
SCREW
E-RING
TRIGGER
TRIGGER PIN
AIR INLET CAP
EXHAUST COVER
EXHAUST MESH
E-RING
FRONT PLATE
SCREW

No. Part Item description
42
43
44
45
46
47
49
50
51
52
53
54
55
58
63
64
65
66
67
68
69
70
71
72
73
74
75
.		 FC-19
SP-27
M5*14
MZ-26
SM-06
M3*4
SM-26
M4*4
SP-26
FD-20
MZ-27
CA-09
PS-35
MZ-31
OR-60
VS-25
OR-59
VS-26
SP-33
OR-58
VS-24
SP-32
OR-57
VS-23
WS-29
OR-08
ORK5018
.

LATCH
LATCH SPRING
SCREW
MAGAZINE COVER
PIN
SCREW
ROD
SCREW
PUSHER SPRING
PUSHER
MAGAZINE COVER
CAP ASSEMBLY
PISTON & DRIVER ASSEMBLY
MAGAZINE ASSEMBLY
O-RING
OUT SWITCH II
O-RING
VALVE II
SPRING
O-RING
SWTICH CAP
VALVE SPRING
O-RING
VALVE PLUNGER II
PLUNGER GUIDE
O-RING
O-RING KIT
.
