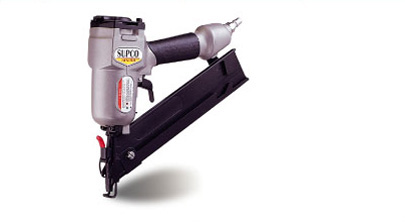

SUPCO SDA-50
Angel Brad Nailer

[+] Click image below
Application
Molding, Finish & Trim,Cabinet work,Door & Window Casting,
Stairs Cases, Paneling

.
15GA. ANGLE BRAD NAILER 2" (50mm),SENCO "DA"

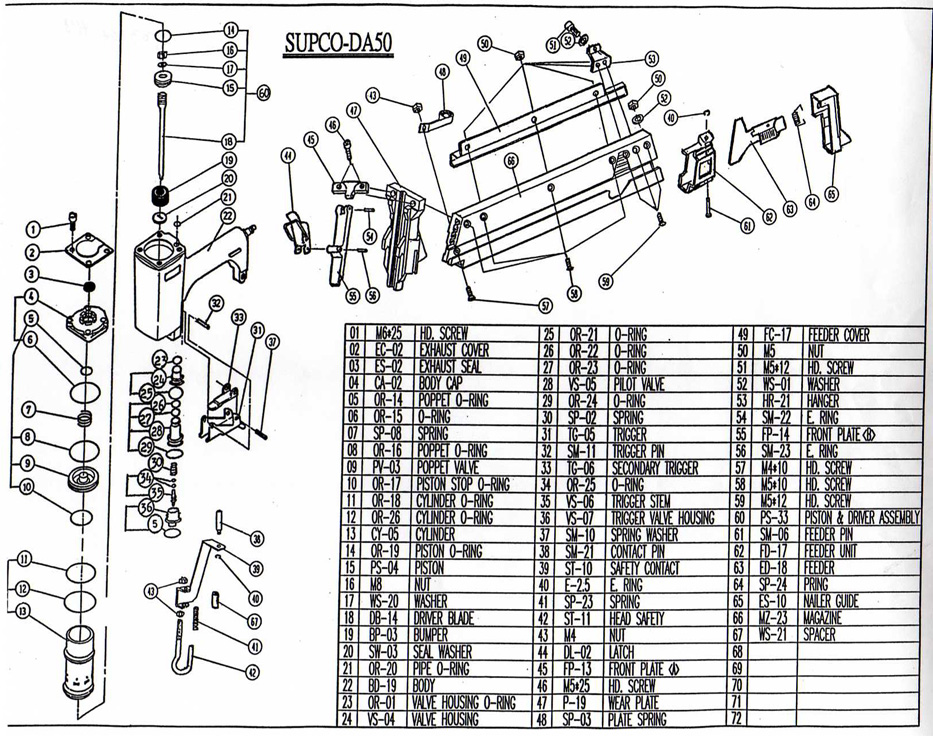

Part diagram: PDF JPEG List: WORD
Wire size: 15 GA.
Weight: 4.8 Lbs. (2.2 KG.)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34		 M6*25
EC-02
ES-02
CA-02
OR-14
OR-15
SP-08
OR-16
PV-03
OR-17
OR-18
OR-26
CY-05
OR-19
PS-04
M8
WS-20
DB-14
BP-03
SW-03
OR-20
BD-19
OR-01
VS-04
OR-21
OR-22
OR-23
VS-05
OR-24
SP-02
TG-05
SM-11
TG-06
OR-25

HD SCREW
EXHAUST COVER
EXHAUST SEAL
BODY CAP
POPPET O-RING
CAP O-RING
SPRING
POPPET O-RING
POPPET VALVE
PISTON STOP O-RING
CYLINDER SEAL O-RING
CYLINDER O-RING
CYLINDER
PISTON O-RING
PISTON
NUT
WASHER
DRIVER BLADE
BUMPER
NOZZLE (SEAL WASHER)
PIPE O-RING
BODY
VALVE HOUSING O-RING
TRIGGER VALVE HOUSING
O-RING
O-RING
O-RING
PILOT VALVE
O-RING
SPRING
TRIGGER
TRIGGER PIN
SECONDARY TRIGGER
O-RING

No. Part Item description
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
.		 VS-06
VS-07
SM-10
SM-21
ST-10
E-2.5
SP-23
ST-11
M 4
DL-02
FP-13
M5*25
P-19
SP-03
FC-17
M5
M5*12
WS-01
HR-21
SM-22
FP-14
SM-23
M4*10
M5*10
M5*12
PS-33
SM-06
FD-17
ED-18
SP-24
ES-10
MZ-23
WS-21
.

TRIGGER STEM
TRIGGER VALVE HOUSING
SPRING WASHER
CONTACT PIN
SAFETY CONTACT
E WASHER
SPACER
HEAD SAFETY
NUT
LATCH
FRONT PLATE A
HD SCREW
WEAR PLATE
PLATE SPRING
FEEDER COVER
NUT
HD SCREW
WASHER
HANGER
E RING
FRONT PLATE B
E RING
HD SCREW
HD SCREW
HD SCREW
PISTON & DRIVER ASSEMBLY
FEEDER PIN
FEEDER UNIT
FEEDER
SPRING
NAIL GUIDE
MAGAZINE
SPACER
.
