SUPCO SC-2516
Corrugated Fastener ( Spotnail )
[+] Click image below
Application
- Pallet repair
- Picture frames

.

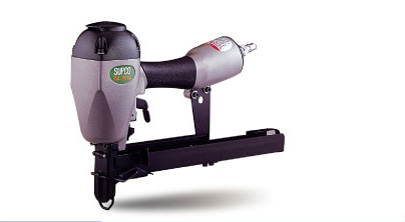

SPOTNAIL CORRUGATED FASTENER TOOL 5/8" (16mm)
Part diagram: PDF JPEG List: WORD
Wire size: 1"Wide strip steel
Weight: 2.38kg (5.24lb)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
BH5*10
WS-37
EC-09
OR-76
M5*20
WS-05
CA-24
ES-28
OR-97
SP-46
OR-16
PV-11
OR-54
OR-17
WS-52
WS-53
M8
WS-20
OR-19
PS-19
PS-20
SM-70
SM-71
DB-32
PS-63
OR-18
CY-23
OR-98
BP-14
BD-44
OR-43
CA-25
SW-16
P-43
FP-42
M5*25
FP-46
SM-61
SP-47
DL-05
SM-11

BH SCREW
BUSHING
EXHAUST DEFLECTOR
O RING
HD SCREW
WASHER
CAP
EXHAUST SEAL
O RING
SPRING
O RING
POPPET
O RING
O RING
GUIDE SPACER
GASKET
NUT
WASHER
O RING
PISTON
PISTON SCREW
SPRING PIN
STEM
DRIVER BLADE
PISTON/DRIVER ASSEMBLY
O RING
CYLINDER
O RING
BUMPER
BODY
O RING
END CAP
RETURN SEAL
WEAR PLATE
STATIONARY FRONT PLATE
HD SCREW
REMOVABLE FRONT PLATE
SPRING PIN
LATCH SPRING
QUCIK CLEAR LATCH
SPRING PIN

No. Part Item description
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82 		ES-22
SP-43
SM-41
SM-53
SM-39
FC-41
Z-03
M4
Z-04
ST-36
SP-36
OR-01
VS-04
OR-21
OR-22
OR-23
VS-05
OR-24
SP-02
OR-25
VS-06
VS-07
OR-14
TG-06
TG-05
SM-10
SM-43
OR-10
HR-48
WS-01
M5*12
FC-43
SM-44
SM-56
SP-48
MZ-84
FD-35
FC-45
M5*14
FC-44
SM-57

SAFETY GUIDE
SPRING
SAFETY PIN
LEVER
BALL
SAFETY WASHER
E RING
NUT
SPRING
SAFETY
SPRING
O RING
TRIGGER VALVE CAP
O RING
O RING
O RING
PILOT VALVE
O RING
SPRING
O RING
PLUNGER
VALVE HOUSING
O RING
SECONDARY TRIGGER
TRIGGER
SPRING PIN
TRIGGER PIN
O RING
BRACKET
WASHER
HD SCREW
MAGZINE COVER
SPRING PIN
NEGATOR SPRING PIN
NEGATOR SPRING
MAGZINE
PUSHER
MAGAZINE COVER
HD SCREW
MAGAZINE COVER (B)
PIN
