SUPCO F-32
Brad Tacker

[+] Click image below
Application
- Cabinet work
- Trim & molding
- Crafts
- Paneling

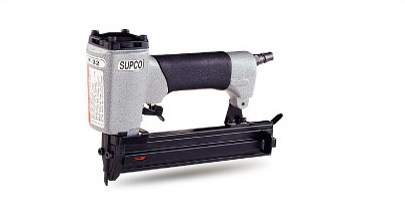

18GA. BRAD NAILER 1 1/4" (32mm)

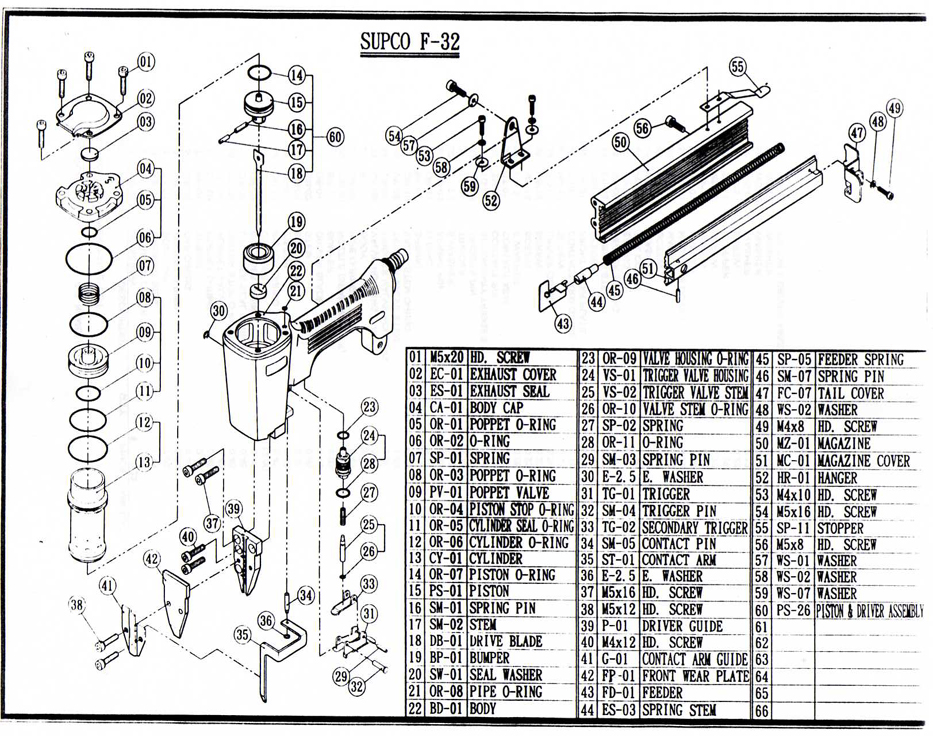

Part diagram: PDF JPEG List: WORD
Wire size: 18GA
Weight: 1.25kg (2.8lb)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30 		M5*20
EC-01
ES-01
CA-01
OR-01
OR-02
SP-01
OR-03
PV-01
OR-04
OR-05
OR-06
CY-01
OR-07
PS-01
SM-01
SM-02
DB-01
BP-01
SW-01
OR-08
BD-01
OR-09
VS-01
VS-02
OR-10
SP-02
OR-11
SM-03
E2.5

HD SCREW
EXHAUST COVER
EXHAUST SEAL
BODY CAP
POPPET O-RING
CAP O-RING
SPRING
POPPET O-RING
POPPET VALVE
PISTON STOP O-RING
CYLINDER SEAL O-RING
CYLINDER O-RING
CYLINDER
PISTON O-RING
PISTON
SPRING PIN
STEM
DRIVER BLADE
BUMPER
NOZZLE (SEAL WASHER)
PIPE O-RING
BODY
VALVE HOUSING O-RING
TRIGGER VALVE HOUSING
TRIGGER VALVE STEM
VALVE STEM O-RING
SPRING
O-RING
SPRING PIN
E.WASHER

No. Part Item description
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60 		TG-01
SM-04
TG-02
SM-05
ST-01
E2.5
M5*16
M5*12
P-01
M4*12
G-01
FP-01
FD-01
ES-03
SP-05
SM-07
FC-07
WS-02
M4*8
MZ-01
MC-01
HR-01
M4*10
M5*16
SP-11
M5*8
WS-01
WS-02
WS-07
PS-26

TRIGGER
TRIGGER PIN
SECONDARY TRIGGER
CONTACT PIN
CONTACT ARM
E WASHER
SCREW
SCREW
DRIVER GUIDE
SCREW
CONTACT ARM GUIDE
FRONT WEAR PLATE
FEEDER
SPRING STEM
FEEDER SPRING
SPRING PIN
TAIL COVER
WASHER
SCREW
MAGAZINE
MAGAZINE COVER
HANGER
SCREW
SCREW
STOPPER
SCREW
WASHER
WASHER
WASHER
PISTON & DRIVER ASSEMBLY
